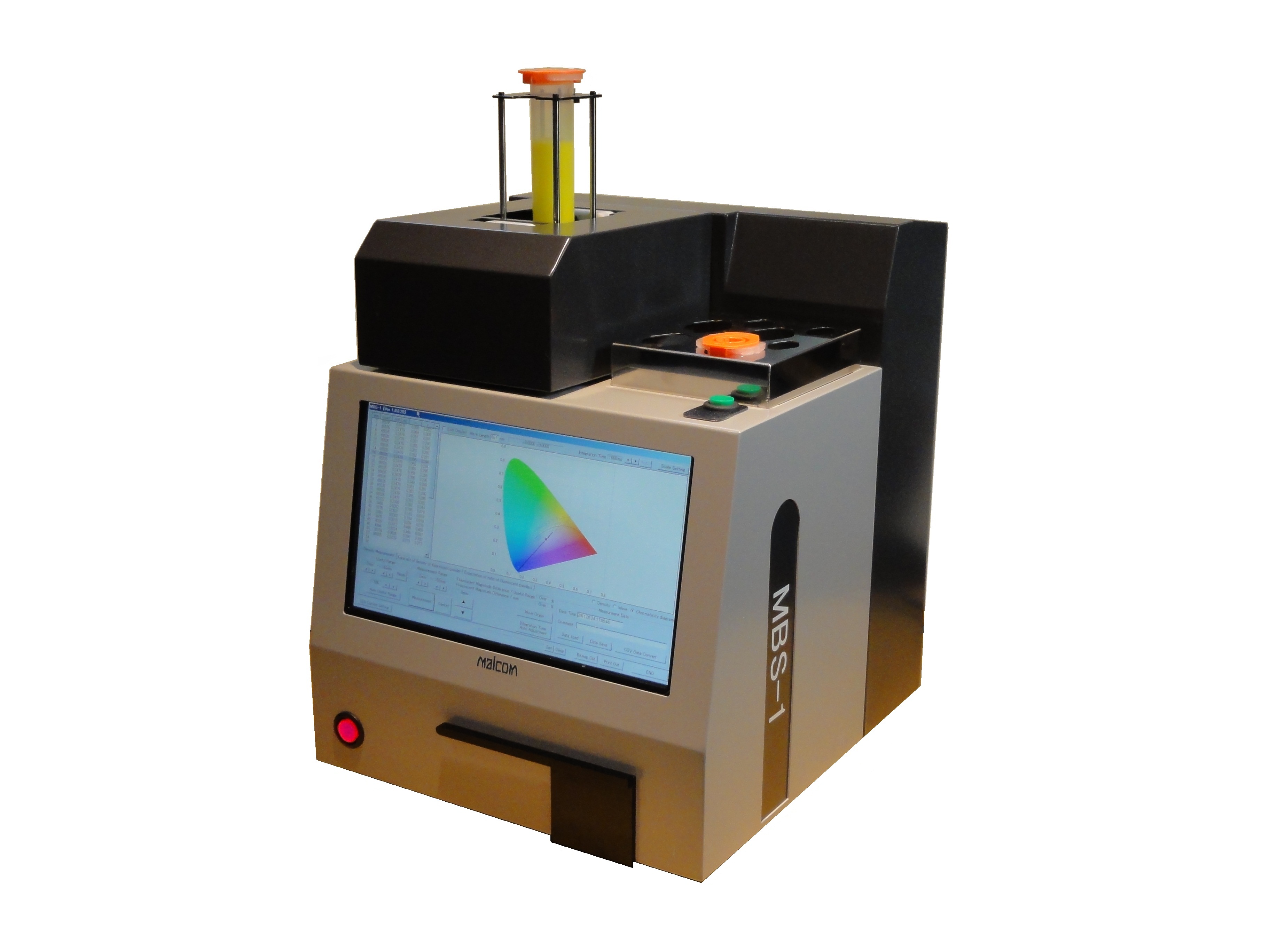

FLUORESCENCE　SPECTROPHOTOMETER(MBS-1)

Can be done before potting in the state of the syringe compounding rate target prediction and color coordinate scatter phosphor concentration.

■ Before potting at the production site
· To manage the number that the quality of the sealing material contained in the syringe is constant is possible.
· You can measure the distribution and concentration of the phosphor blend more than one condition in the sealing
material contained in the syringe.
■ Research and development in the field
· MBS-1 measured in the sealing material in the syringe, you know the chromaticity values to the chip prior to
potting.
· Predictable or mixed at a ratio which more than one phosphor to create a sealing material chromaticity values of
hope, of correlated color temperature.

Item		Specification
Model Name		MBS-1
Method		Fluorescenece Intensity Measurement
Detector		3648 Element Linear Silicon CCD Array
Measurement Wavelength		380～780nm
Displayed Items		・Density Measurement
		Spectral Radiant Flux (μW/nm, μW/cm²/nm), Irradiance (μW/cm²)Concentration dispersion of encapsulant in a syringe
		・Integrating sphere Measurements
		Luminous Flux (lm), luminous Intensity (cd), CIE Chromaticity Coordinate (x,y,z,u,v,u’,v’), Correlated Color Temperature (K), General Color Rendering Index (Ra), Color Rendering Index (R1～R8), Special Color Rendering Index (R9～R15)
		・Predictive capabilities
		Luminous Flux (lm), luminous Intensity (cd), CIE Chromaticity Coordinate (x,y,z,u,v,u’,v’), Correlated Color Temperature (K), General Color Rendering Index (Ra), Color Rendering Index (R1～R8), Special Color Rendering Index (R9～R15)
Syringe	Size	5 cc, 10 cc, 30 cc and 55 cc
	Accuracy	Spectral Radiant Flux (μW/nm) : ±2%
	Operation Stroke	0 mm～120 mm
	Measurement Speed	2 mm/s (max. speed)
	Excitation Light Source	Blue LED with feed back (approx. 441 nm)
Integrating Sphere	Accuracy	Spectral Radiant Flux (μW/nm) : ±2%
	Measurement Speed	1 ms～5000 ms
	Excitation Light Source	Arbitrary chip LED Current: 10～350mA
Interface		USB
Operation Panel		10.1 inch color LCD (touch panel)
Outer Dimension		330 (D) x 280 (W) x 350 (H) (mm) (the projection portion is not included)
Power Supply		100 ～ 240V AC
Weight		Approx. 13 kg
