REFLOW CHECKER MEMORY UNIT(PLUS α O2 CONCENTRATION MONITOR RCM-O

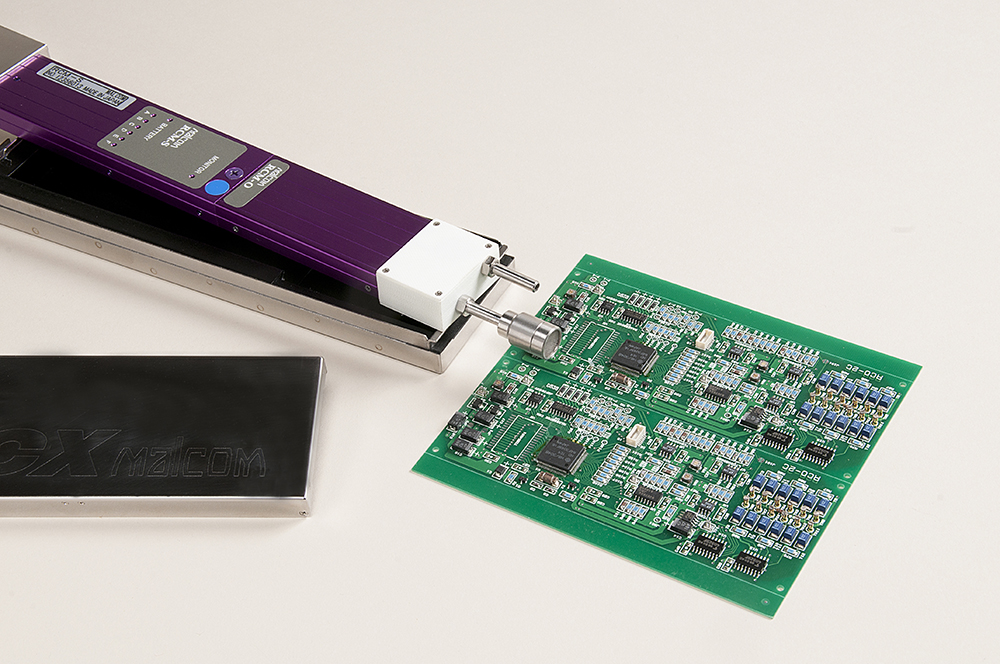

REFLOW CHECKER MEMORY UNIT
(PLUS α O2 CONCENTRATION MONITOR RCM-O）
- ● Measure the oxygen concentration profile in the furnace.
●Oxygen concentration at the most important substrate position can be measured.

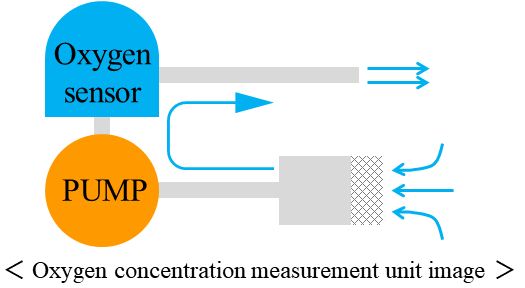

Oxygen concentration at substrate position

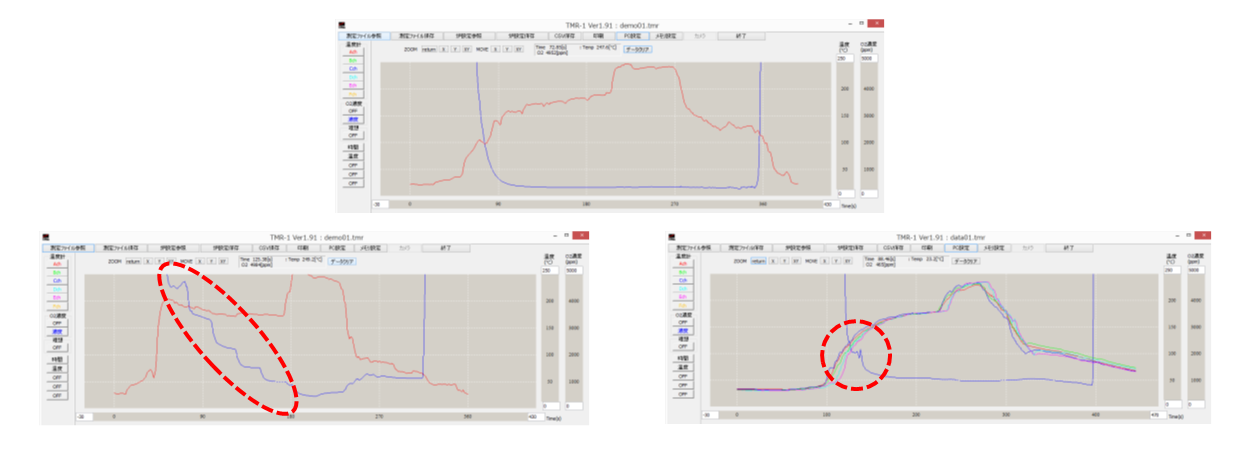

Oxygen concentration profile
Feature
product specification
| Item | Specification | |
| Model Name | RCX-O | |
| Main Unit | RCM-O | |
| Max. measuring time | Ni-MH battery: Approx. 40min. | |
| Sampling time | 0.05sec. 0.1sec. 0.2sec. 0.5sec. 1.0sec. 2.0sec. 4.0sec. 8.0sec. | |
| Arbitrary setup possible (synchronized to RCM-S memory unit) | ||
| Oxygen | Measurement principle | Zirconia limiting current method |
| Measurement range | 50ppm～5000ppm | |
| Measurement accuracy | 50ppm～1000ppm±5％FS | |
| 1000ppm～5000ppm±10％FS | ||
| Power supply | Supplied from RCM-S Memory unit | |
| Ni-MH battery (AAA battery x 3) | ||
| Outer dimensions | 65(W)×383(D)×25(H)（㎜） Excluding projections | |
| Weight | Approx. 950g (including battery, tray is not included) | |
- * The maximum measuring time is a time in which heat resistance is not considered, and it cannot be measured
in the reflow oven. - * Manganese batteries and alkaline batteries are not available.
- * Lithium-ion secondary battery or AAA battery is selectable at the time of order.
- * The above specifications are subject to change without notice.
Cooling Unit
| Item | Specification | |
| Model name | RCF-3 | |
| Power supply | 100V～240V AC, (approx. 15W) 50/60Hz | |
| Fan | Square 120 mm (2.9 m3 /min. Max.) 2 pcs. | |
| Input gas | Rc 1/8 screw connection Air 0.5Mpa following | |
| Outer dimensions | 350(W)×240(D)×160(H) (㎜) | |
| Weight | Approx. 5kg | |
