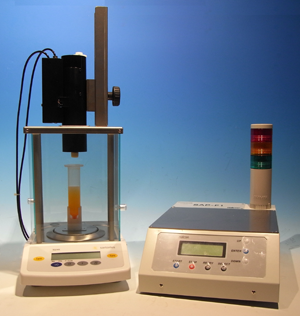

SYRINGE PHOSPHOR DISPENSING SYSTEM（SAP-F1）
Usage
Can be controlled with high precision dispensing dispersant phosphors.
Feature
- ● Accuracy of ± 0.3mg powder.
- ● You can configure the system for optimum use material type and tact purpose.
product specification
| Item | Specification | |
| Model Name | SAP-F1 | |
| Phosphor dispensing unit | Method | Powder screw method |
| Material | Phosphor | |
| Accuracy | ±0.3mg | |
| Phosphor dispensing method | Phosphor dispensing unit | |
| Weight | Approx. 700g | |
| Outer dimensions | Φ60×85×200㎜ | |
| Controller unit | Power supply | AC100～240V 50/60Hz |
| Air input | 0.5 MPa | |
| Weight | Approx. 5kg | |
| Outer dimensions | 245(W)×387(D)×303(H)（㎜） | |
| Power consumption | 15W | |
- * The above specifications are subject to change without notice.
