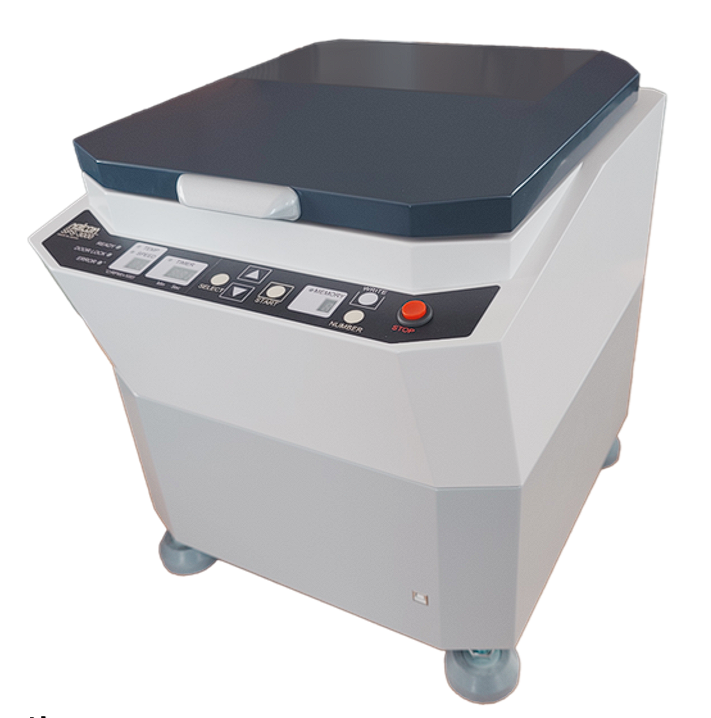

SOLDER PASTE SOFTENER（SPS-3000）
NEW PRODUCT
NEW PRODUCT
This solder paste softener build-in temperature monitoring function. Solder paste is mixing until good condition for printing.
New step function that combines rotation speed and time has been added.

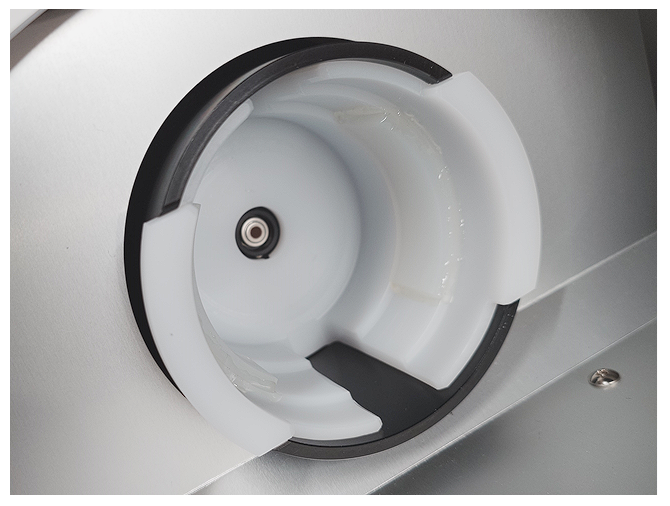

Housing temperature sensor
Temperature-controlled
Auto-balancer Function
Feature
- ●High speed revolution, approx.1000rpm, allows for mixing in short time.
- ●Temperature monitoring function makes solder paste the best condition.
- ●Built-in auto-balancer function for adjusting the balance, depending on weight automatically.
- ●Makes the appropriate rotation profile freely by PC.
product specification
| Item | Specification |
| Model Name | SPS-3000 |
| Outer Dimension | 370（W）×410（D）×410（H）（mm）(not including protrusions) |
| Mixing Method | One container kneading : Spinning and revolving centrifugal type |
| Mixing Material | Solder Paste |
| Paste Container Sizes | 200 to 500g capacity container
(Various containers can be used by using dedicated adapters.) |
| Setting System | Adapter attachment system |
| Balance | Auto-Balancing
(Applicable for 250-550g (container weight included) with 500g container) |
| Speed Range | Revolving speed : Max. 1000rpm
Spinning speed : 1/3 the revolving speed |
| Speed Setting Range | 300rpm - 1000rpm |
| Temp. Setting Range | 10C - 50C |
| Temperature display range | 0C - 50C |
| Built-in Timer | Settable 1sec. - 60min. Less than 10min (1sec/unit), 10min or more (10sec/unit) |
| Safety Interlocks | Locked during operation, Unbalanced Motion Detector |
| Memory Function | Allow to memorize settings. (Max.8 items) |
| Power Supply | AC100V (+/-10V) 50Hz/60Hz |
| Operating Environment | 10-40C, 20-80%RH (No condensation) |
| Power Consumption | 1800W |
| Weight | Approx. 25kg |
- * The above specifications are subject to change without notice.
